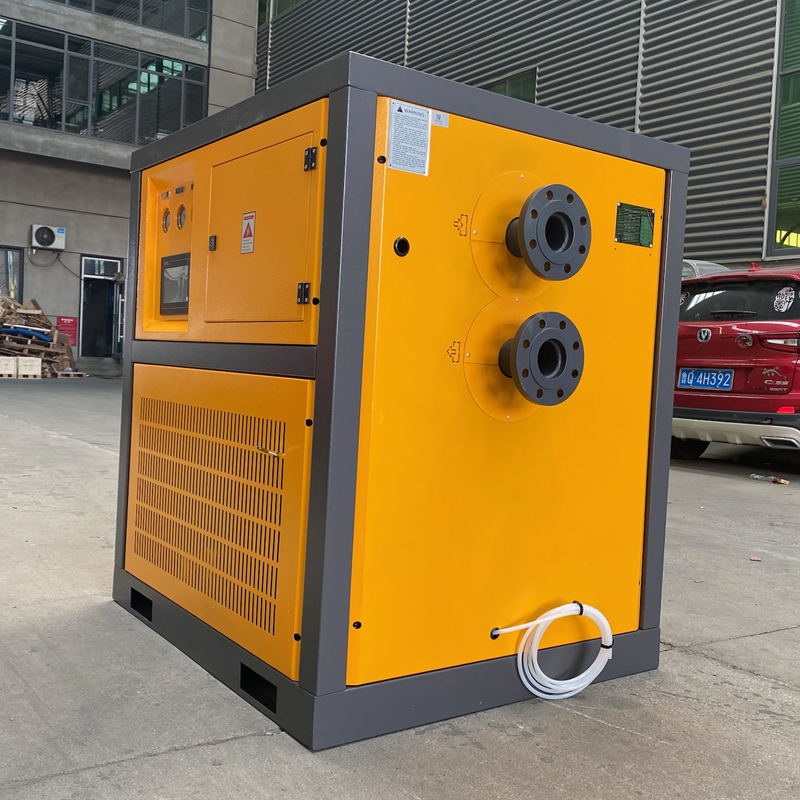

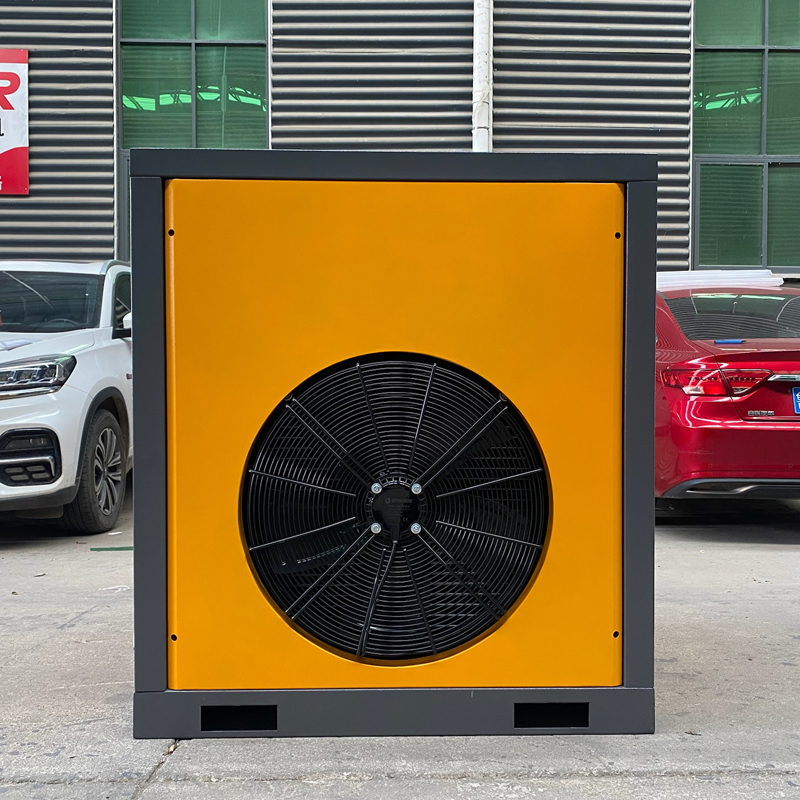

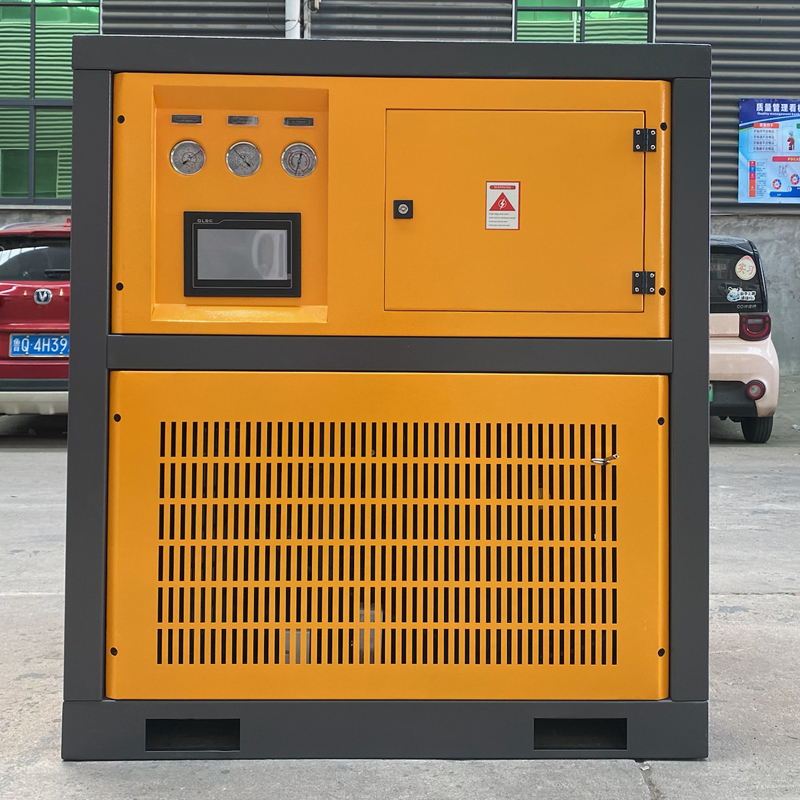

20m3 16bar Plate Heat Exchange Air Dryer Screw Air Compressor Air Dryer for Industrial Use

Short Description:

Plate heat exchanger structure,Reliable and durable operation, stable pressure resistance, suitable for various air compressor systems.
Pressure: 2-10 bar (16/20/30/40 bar can be customized)
Stable dew point 2～10℃, thorough water and oil removal, clean air source.
Multiple safety protections: high and low pressure, overload, and antifreeze for enhanced safety.
Complete range of models: 1-6m³ small flow / 20m³ and other large flow options available.
Compact structure, easy installation, small footprint.
Widely applicable to: blow molding, injection molding, high pressure testing, machinery, woodworking, and other industries.

Send email to us

Product Detail

OPPAIR factory introduction

OPPAIR customer feedback

video

Detailed View

OPPAIR Air Dryer

Model		OFD-1	OFD-2	OFD-3	OFD-6	OFD-8	OFD-10	OFD-13	OFD-15
Capacité de traitement (m³/min)		1.5
Pression de fonctionnement (bar)		2-10 bar (16/20/30/40 bar peuvent être personnalisés)
Température du point de rosée (°C)		2-10℃
Température de fonctionnement		≤ 45℃
Tension		220V/50Hz/1P ou 220V/60Hz/1P ou autre tension
Puissance du compresseur (KW)		0.5	0.7	0.9	1	1.6	2	3	3.1
Puissance du ventilateur (W)		80	95	120	240	300	380	420	480
Diamètre de la sortie d'air (mm)		DN25	DN25	DN40	DN40	DN50	DN50	DN50	DN50
Dimensions	Longueur (mm)	650	750	800	930	1000	1050	1280	1160
	Largeur (mm)	420	420	440	500	580	600	650	700
	Hauteur (mm)	620	710	800	910	1000	1030	1120	1230
Poids net de la machine (kg)		31	38	50	70	87	140	167	190

Model		OFD-20	OFD-25	OFD-30	OFD-40	OFD-50	OFD-60	OFD-80	OFD-100
Processing capacity (m³/min)		20	25	30	40	50	60	80	100
Working pressure (bar)		2-10 bar ( 16/20/30/40bar can be customized)
Dew point temperature(°C)		2-10℃
Operating temperature		≤ 65℃
Voltage		380V/50Hz/3P or 220V/440V/60Hz/3P or other voltage
Compressor power (kw)		3.68	4.41	5.15	6.62	8.82	11.03	14.7	18.4
Fan power (w)		480	480	720	720	720	760	960	1440
Air outlet diameter (mm)		DN75	DN75	DN100	DN100	DN100	DN100	DN150	DN150
Dimensions	Length (mm)	1500	1550	1770	1950	1950	2200	2500	2700
	Width (mm)	750	750	850	900	1050	1325	1325	1600
	Height (mm)	1440	1600	1445	1560	1600	1585	1695	2100
Machine net weight (kg)		220	270	360	490	560	680	760	970
