30/40bar High Outlet Pressure Industrial Booster Air Compressor 45kw 60hp 8/10bar 7m3/min Air Compressor for plastic bottle blow molding

Short Description:

Power：22kw-55kw
Air Compressor Pressure：8bar 10bar
Outlet Pressure：30bar 40bar
Composition：
• PM VSD Inverter Compressor
• Efficient air dryer
• 600L 8bar tank
• 600L 30/40bar tank
• Booster
• CTAFH 5-clase precision filter
Application industry:
Blow molding machines,injection molding machines,plastic machinery,blow molding equipment,bottleblowing machines,material blowing machines

Send email to us

Product Detail

OPPAIR factory introduction

OPPAIR customer feedback

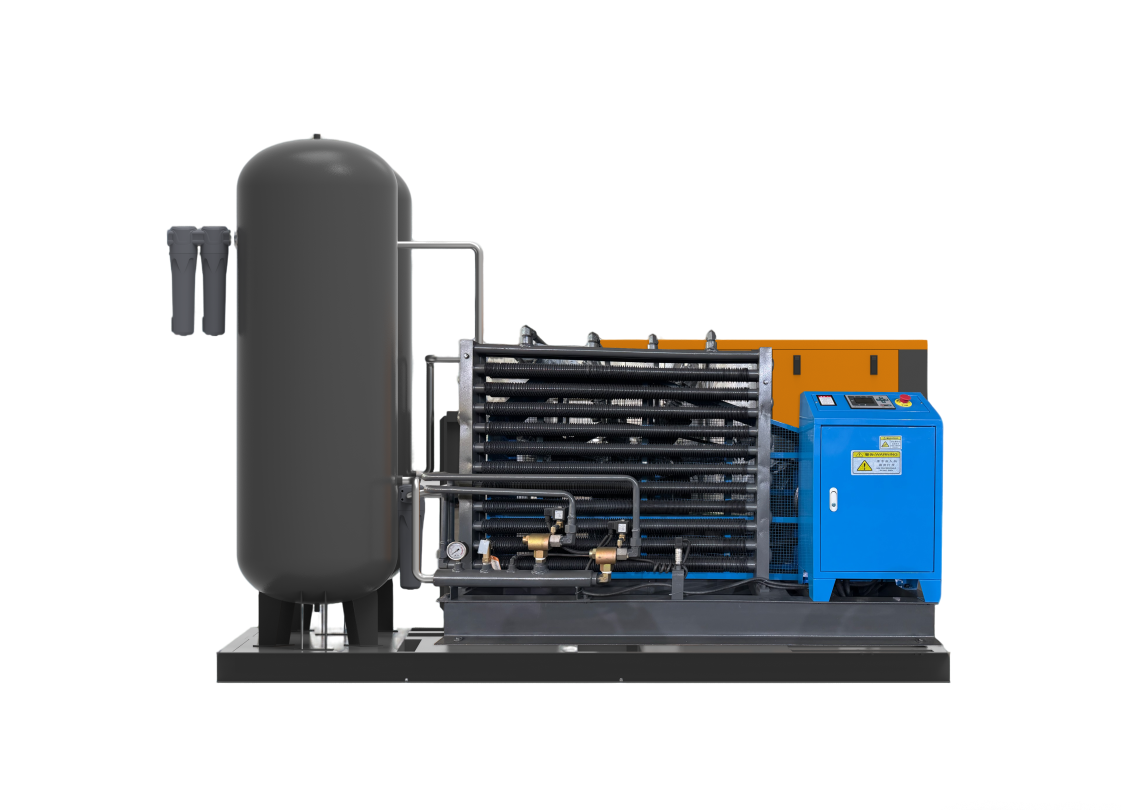

30/40bar High-pressure Air Compressor for Blow Molding/Bottle Blowing

Composition:

1. PM VSD Inverter Compressor

2. Efficient air dryer

3. 600L 8bar tank

4. 600L 30/40bar tank

5. Booster

6. CTAFH 5-clase precision filter

857ec40781616e5e7978f7f5e4641d4d8676e2735dd99-KdUtH4_fw1200

cd9fcd8b23575778f00e96c1338dcf7c8a9498362447bd-Fu49NI

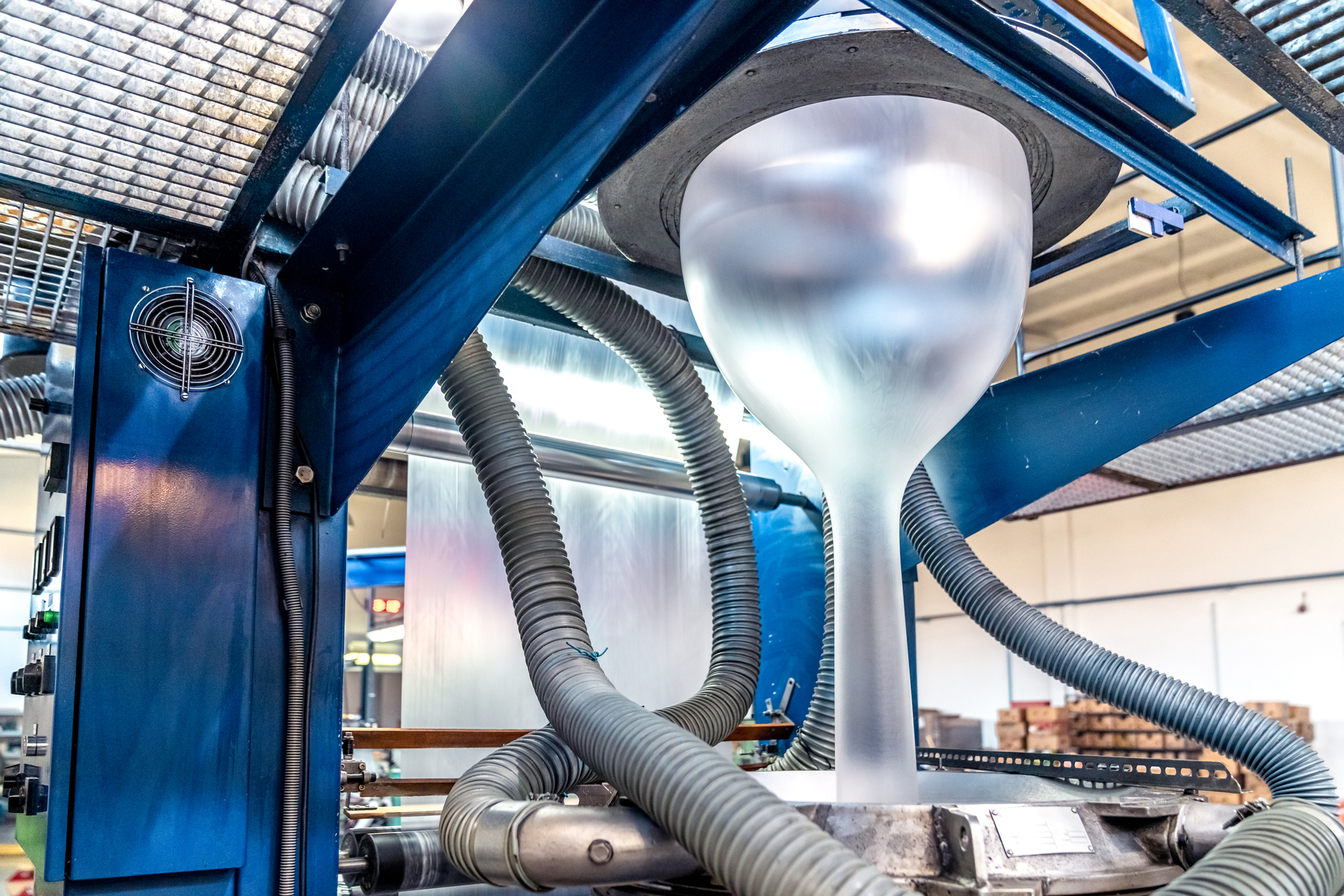

blowing plastic on a machine into a roll for the production of plastic bags.

Application industry:

Blow molding machines,injection molding machines,plastic machinery,blow molding equipment,bottleblowing machines,material blowing machines

Model	Air compressor Power	Outlet Pressure	Air Supply m3/min	Outlet size	Filter level	Filtration accuracy
Top-3/30	22kw 30hp 8bar	30bar	3.2	DN40	5-clase	Oil removal, water removal, dust removal, filtration accuracy: 0.001um
Top-5/30	30kw 40hp 8bar	30bar	5	DN40	5-clase
Top-6/30	37kw 50hp 8bar	30bar	6	DN40	5-clase
Top-7/30	45kw 60hp 8bar	30bar	7	DN40	5-clase
Top-9/30	55kw 75hp 8bar	30bar	9	DN40	5-clase
Top-3/40	22kw 30hp 10bar	40bar	3.2	DN40	5-clase
Top-4/40	30kw 40hp 10bar	40bar	4.5	DN40	5-clase
Top-5/40	37kw 50hp 10bar	40bar	5.6	DN40	5-clase
Top-6/40	45kw 60hp 10bar	40bar	6	DN40	5-clase
Top-8/40	55kw 75hp 10bar	40bar	8.5	DN40	5-clase

Previous: Top Quality 30kw 40hp Screw Air Compressor Booster 30/40bar Outlet Pressure 4.5m3/min 5m3/min for Blow Molding Machine

Next: High Efficient 30/40bar Booster Screw Air Compressor 55kw 75hp 9m3/min Air Compressor for Plastic Jerry Can Blow Molding Machine

Shandong OPPAIR Machinery Manufacturing Co.,Ld base in Linyi Shandong, anAAA-level enterprise with high-quality service and integrity in China.
OPPAIR as one of the world’s largest air compressor system suppliers, currently developing the following products: Fixed-speed Air Compressors, Permanent Magnet VariableFrequency Air Compressors, Permanent Magnet Variable Frequency Two-stage Air Compressors, 4-IN-1 Air Compressors (lntegrated Air Compressor for Laser Cutting Machine)Supercharger, Freeze Air Dryer, Adsorption Dryer, Air Storage Tank and related accessories.

OPPAIR air compressor products are deeply trusted by customers.

The company has always operated in good faith in the direction of customer service first, integrity first, and quality first. We hope you will join the OPPAIR family and welcome you.
