99.99% High Purity Nitrogen Generator Laser Cutting 5 Grade Precision Filter

Short Description:

High purity laser cutting special nitrogen generator
100Nm3/h 150Nm3/h 200Nm3/h 99.99% high purity, specially designed for laser cutting of stainless steel.
PLC intelligent control, equipped with purity display, automatic start and stop, automatic emptying.

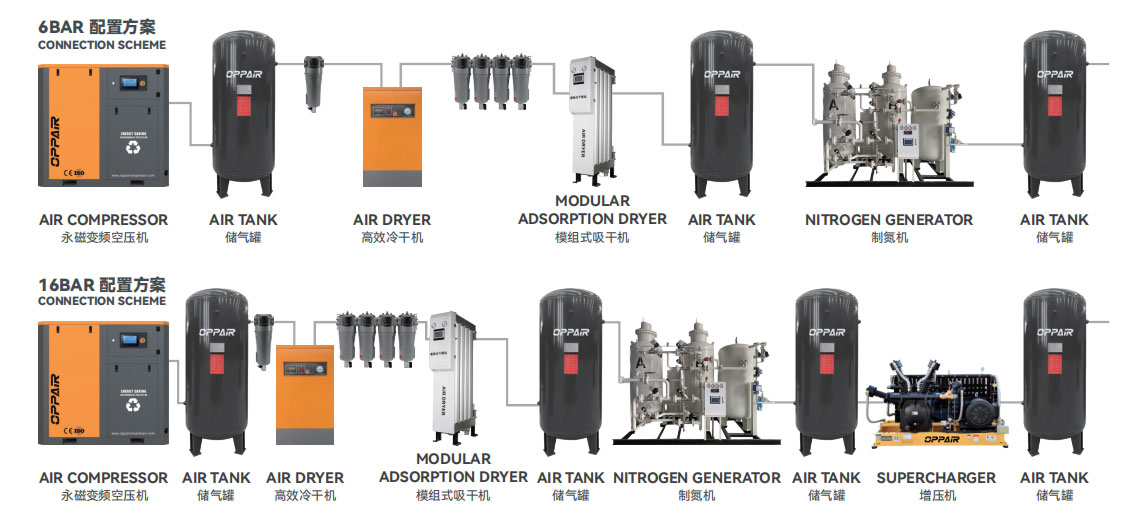

Plate change type dryer + Modular adsorption dryer+5 high efficiency precision filter to ensure the cleanliness of nitrogen.
6bar/16bar two options.

Send email to us

Product Detail

OPPAIR factory introduction

OPPAIR customer feedback

STAINLESS STEEL

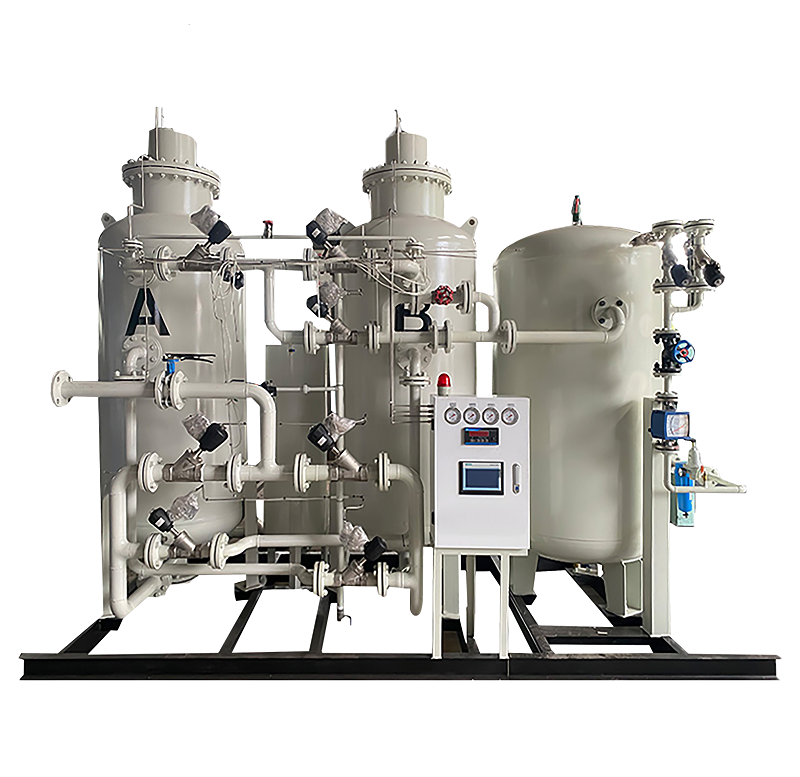

HIGH PURITY LASER CUTTING SPECIAL NITROGEN GENERATOR

1.100-200Nm3/h, 99.99% high purity, specially designed for laser cutting of stainless steel.
2.PLC intelligent control, equipped with purity display, automatic start and stop, automatic emptying
3.Plate change type dryer + Modular adsorption dryer +5 high efficiency precision filter to ensure the cleanliness of nitrogen.
4.6bar/16bar two options.

Application
Model	N2-100-99.99%	N2-150-99.99%	N2-200-99.99%
Nitrogen flow	100 Nm3/h	150 Nm3/h	200 Nm3/h
Matching laser cutting machine	≤2W	3W	≥4W or two 2W units for sharing
Cutting material	Stainless steel

Model		N2-100-99.99%	N2-150-99.99%	N2-200-99.99%
Nitrogen Generator	Purity (%)	99.99%
	Nitrogen production (Nm3/h)	100	150	200
	Voltage (V/HZ)	220V 50/60HZ 1P
	Power (KW)	0.3
	Control method	PLC automatic control, with functions such as purity display, automatic start and stop, automatic exhaust, etc.
Screw air compressor	Power/Horsepower (Kw/Hp)	75 / 100	90 / 125	110 / 150
	Type	PM VSD	PM VSD	PM VSD
	Medium	Air	Air	Air
	Cooling method	Air Cooling	Air Cooling	Air Cooling
	Working pressure (Bar)	8	8	8
	Air supply (m3/min)	12.6	15	19.8
Air tank	Capacity (L)	*20003**	*20003**	*30003**
Air tank	Working pressure (Bar)	8	8	8
Air dryer	Processing capacit(m3/min)	13.5	15	20
Air dryer	Pressure resistance(Bar)	10	10	10
Adsorption dryer	Type	Modular	Modular	Modular
	Processing capacit(m3/min)	15	15	20
	Pressure resistance(Bar)	10	10	10
Complete Set	Voltage: (V/HZ)	380V/400V/415V 50HZ 3P 220V/440V 60HZ 3P
	Nitrogen production pressure (Bar)	6bar (1-6bar adjustable)
	Nitrogen purity (%)	99.99%
	Air outlet	DN32	DN40	DN50
	Complete installation length (m)	10-12 m	12-14 m	13-15 m
	Complete installation width (m)	1.5 m	2 m	2 m
	Complete installation height (m)	2.9 m	3.1 m	3.2 m
	Complete set weight (Kg)	4800	6400	8300
