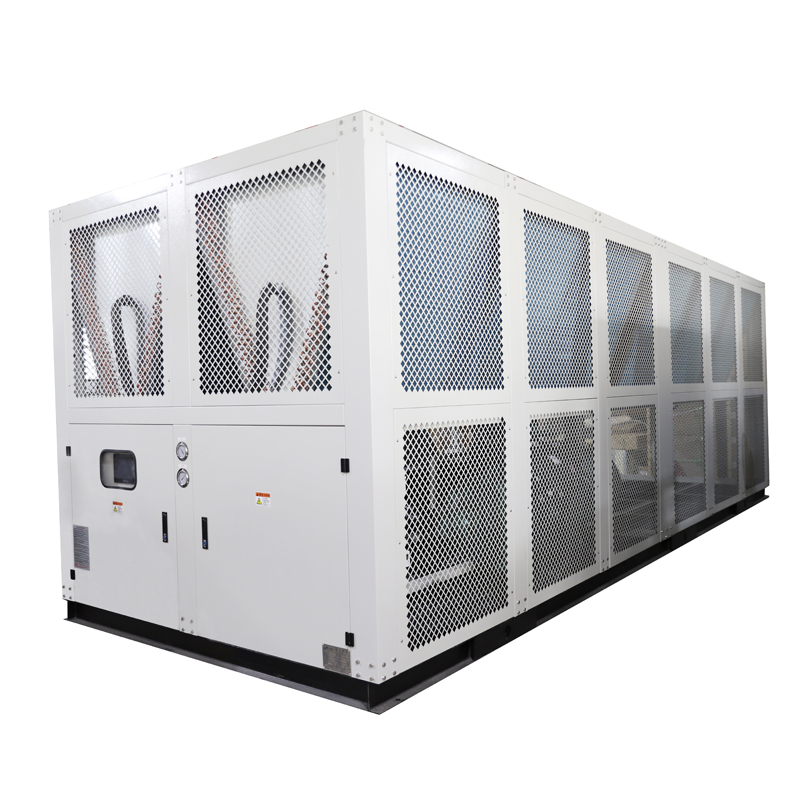

Air Cooled Water Chiller with High Efficiency for Industrial Water Chiller Cooling in Laser and Circuit Board Manufacturing

Short Description:

Industrial Chiller Water Cooling Chiller Water Chiller for Injection Molding Machine air cooled chiller industrial water chiller water chiller cooling system High Efficiency Industrial Water Chiller with Precise Temperature Control chiller water cooled

Send email to us

Product Detail

OPPAIR factory introduction

OPPAIR customer feedback

30/40bar High-pressure Air Compressor for Blow Molding/Bottle Blowing

Compressor:
·The compressor uses an international brand, a new high-efficiency screw rotary compressor, which is 20~30% more energy-efficient
than ordinary compressors.
·Capacity control can use afour-stage(100%-75%-50%-25%)orthree-stage(100%-66%-33%) system, as well as a stepless controlsystem.
·Using 11 bearings and an A-type axial thrust balancedrum combination design, the bearing life is increased by2.5 to 3.5 times.
·Using high-efficiency silicon steel sheets with a specialslot design, the motor is equipped with an internal andextemal omnidirectional cooling channel design, allowingthe compressor motor to operate efficiently under anyload.
·The unique built-in hydraulic system ensures optimallubrication for the compressor without the need for an oilpump.Oil separation uses a dual-ayer filtration method for excellent oil filtering, and the heat exchanger can operate at maximum efficiency.
·Multiple refrigerants are available
·Select environmentally friendly refrigerants such asR134a and R407c
·A full range of compressor capacity ratios(V1=2.2.6/.0/3.5) are available, effectively preventing extraenergy consumption caused by compressor overload orinsufficient compressor pressure.
·Note: Depending on the industry of application, customizable options for heat recovery and explosion-proof types are available.

Model			AC-30	AC-40	AC-50	AC-60	AC-70	AC-80	AC-90	AC-100	AC-110
Use the power supply			3Φ-50Hz-380V
Cooling capacity		kw	87.2	113.6	135.5	168.9	196	221	251	268	302
Cooling capacity		Kcal/h	74990	97680	116520	145250	168560	190060	215860	230480	259720
Power consumption		kw	24.8	33.7	41.5	45.2	57.4	62	69	72.5	83.6
Unit operating current		A	41	56.5	69.6	75.9	96.5	86.7	116.2	122	111.3
Chilled Water Flow		m³h	15	19.6	24.2	29	35	40	45	50.2	53.8
Compressor	Model		Semi-enclosed screw type
	Startup method		Y-△Start
	Capacit Adjustment		0,33,66,100,or0,25,50,75,100
	Input Power	kw	23.3	30.7	38.5	42.2	51.4	56	63	66.3	73
Frozen oil	Model		HBR-A01
Frozen oil	Filling volume	L	7	7	8	12	16	16	16	16	18
Refrigerant	Model		R407C/R134A
	Control method		Thermostatic External Equalizing Expansion Valve
	Filling volume	kg	16	22	27	32	36	42	46	52	56
Evaporator	Model		Shell and tube
Evaporator	Pipe diameter	in	DN65	DN80	DN80	DN80	DN80	DN100	DN100	DN100	DN125
Condenser	Model		High-efficiency copper sleeve aluminum fin type, low-noise external rotor fan 5500
Condenser	Airflow	m³h	31000	42000	55000	65000	73000	84000	93000	102000	112000
Protective device			High and low voltage switches, antifreeze protection, thrombolytic/safety valves, overload protection devices, coil overheat protectors, automatic temperature protection switches, etc.
Dimensions	Long	mm	2200	2030	2030	2800	2800	3050	3050	3050	3150
	wide	mm	1100	2000	2000	1900	1890	2070	2070	2070	2064
	Tall	mm	1820	1630	1730	2130	1930	1990	2020	2120	2230
Unit weight		kg	920	1120	1350	1560	1780	1920	2230	2450	2920
Note:
1. Operating conditions for determining the above specifications: chilled water inlet temperature 12°C, outlet temperature 7°C, cooling water temperature 45°C
2. The above products are continuously improved and innovated. If specifications are changed, no further notice will be given. We appreciate your understanding. Models can be customized according to the actual needs of the customers.
