Our business sticks for the basic principle of "Quality could be the life with the firm, and track record will be the soul of it" for Mobile Compressor , Gas Rotary Screw Air Compressor , Compressor For Drilling Machine , Any needs from you'll be paid out with our best notice!

Fast Delivery Compressor For Sand Blasting - Laser Cutting Compressor with dryer and tank – OPPAIR Detail:

Product Parameters

Normal Pressure

Model	OPA-10F	OPA-15F	OPA-20F	OPA-30F	OPA-10PV	OPA-15PV	OPA-20PV	OPA-30PV
Power(kw)	7.5	11	15	22	7.5	11	15	22
Horsepower(hp)	10	15	20	30	10	15	20	30
Air displacement/ Working pressure (m³/min. / Bar)	1.2/7	1.6/7	2.5/7	3.8/7	1.2/7	1.6/7	2.5/7	3.8/7
	1.1/8	1.5/8	2.3/8	3.6/8	1.1/8	1.5/8	2.3/8	3.6/8
	0.9/10	1.3/10	2.1/10	3.2/10	0.9/10	1.3/10	2.1/10	3.2/10
	0.8/12	1.1/12	1.9/12	2.7/12	0.8/12	1.1/12	1.9/12	2.7/12
Air Tank(L)	380	380/500	380/500	500	380	380/500	380/500	500
Type	Fixed Speed	Fixed Speed	Fixed Speed	Fixed Speed	PM VSD	PM VSD	PM VSD	PM VSD
Air out let diameter	DN20	DN40	DN40	DN40	DN20	DN40	DN40	DN40
Lubricating oil volume (L)	10	16	16	18	10	16	16	18
Noise level dB(A)	60±2	62±2	62±2	68±2	60±2	62±2	62±2	68±2
Driven method	Direct driven	Direct driven	Direct driven	Direct driven	Direct driven	Direct driven	Direct driven	Direct driven
Start method	Υ-Δ	Υ-Δ	Υ-Δ	Υ-Δ	PM VSD	PM VSD	PM VSD	PM VSD
Length (mm)	1750	1820	1820	1850	1750	1820	1820	1850
Width (mm)	750	760	760	870	750	760	760	870
Height (mm)	1550	1800	1800	1850	1550	1800	1800	1850
Weight (kg)	380	420	420	530	380	420	420	530

High Pressure

Model	OPA-15F/16	OPA-20F/16	OPA-30F/16	OPA-15PV/16	OPA-20PV/16	OPA-30PV/16
Power(kw)	11	15	22	11	15	22
Horsepower(hp)	15	20	30	15	20	30
Air displacement/ Working pressure (m³/min. / Bar)	1.0/16	1.2 / 16	2.0 / 16	1.0/16	1.2 / 16	2.0 / 16
Air Tank(L)	380/500	380/500	500	380/500	380/500	500
Air Out let diameter	DN20	DN20	DN20	DN20	DN20	DN20
Type	Fixed Speed	Fixed Speed	Fixed Speed	PM VSD	PM VSD	PM VSD
Driven method	Direct driven	Direct driven	Direct driven	Direct driven	Direct driven	Direct driven
Start method	Υ-Δ	Υ-Δ	Υ-Δ	PM VSD	PM VSD	PM VSD
Length (mm)	1820	1820	1850	1820	1820	1850
Width (mm)	760	760	870	760	760	870
Height (mm)	1800	1800	1850	1800	1800	1850
Weight (kg)	420	420	530	420	420	530

Product description

This machine has 7.5KW, 11KW, 15KW and 22KW, and the pressure can reach: 7bar-16bar. Because of the high pressure of this machine, it can meet the needs of customers for high pressure, such as: laser cutting, sheet metal spraying, fiber cutting, CNC and other industries .

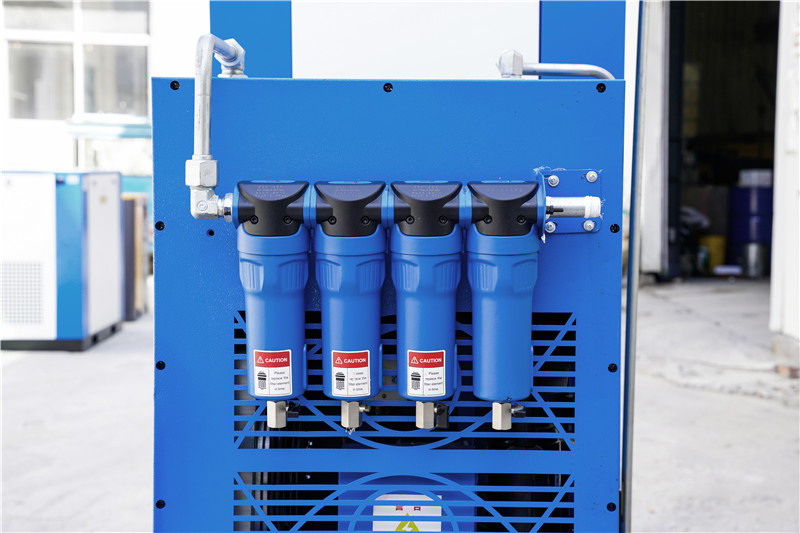

For laser cutting and optical fiber cutting industries, we recommend filters with 5-stage filtration. We mostly use filters with high filtration precision for the filter of this machine, which can remove oil, water, dust and bacteria. The filtration precision can reach: 0.01 um and 0.003um, high-precision filtration, can provide the purest air for gas-using machines, thus protecting the nozzles of laser cutting machines and fiber optic machines from damage.

Product Appearance

laser
laser
laser
laser
laser
laser

Product details

laser
laser
laser
laser
laser
laser

Factory Tour

factory
factory
factory
factory
factory

Product detail pictures:

Related Product Guide:

Dependable good quality and very good credit score standing are our principles, which will help us at a top-ranking position. Adhering towards the tenet of "quality initial, shopper supreme" for Fast Delivery Compressor For Sand Blasting - Laser Cutting Compressor with dryer and tank – OPPAIR , The product will supply to all over the world, such as: Milan, St. Petersburg, Peru, Nowadays our products sell all over the domestic and abroad thanks for the regular and new customers support. We provide high quality product and competitive price, welcome the regular and new customers cooperate with us!

Shandong OPPAIR Machinery Manufacturing Co.,Ld base in Linyi Shandong, anAAA-level enterprise with high-quality service and integrity in China.
OPPAIR as one of the world’s largest air compressor system suppliers, currently developing the following products: Fixed-speed Air Compressors, Permanent Magnet VariableFrequency Air Compressors, Permanent Magnet Variable Frequency Two-stage Air Compressors, 4-IN-1 Air Compressors (lntegrated Air Compressor for Laser Cutting Machine)Supercharger, Freeze Air Dryer, Adsorption Dryer, Air Storage Tank and related accessories.

OPPAIR air compressor products are deeply trusted by customers.

The company has always operated in good faith in the direction of customer service first, integrity first, and quality first. We hope you will join the OPPAIR family and welcome you.
