High power 250kw 20bar Two Stage Screw Air Compressor for Blow Molding

Short Description:

Air compressor series connection:

Screw Air Compressor + Air Tank + Air Dryer + Precision Filter

Baosi 75-250kw 20/25/30bar High-pressure PM VSD Two-Stage screw air compressors are widely used in various industrial fields, especially in blow molding, petroleum chemical, electronics and other industries. They are highly favored for their high efficiency, low noise and low vibration.

Send email to us

Product Detail

OPPAIR factory introduction

OPPAIR customer feedback

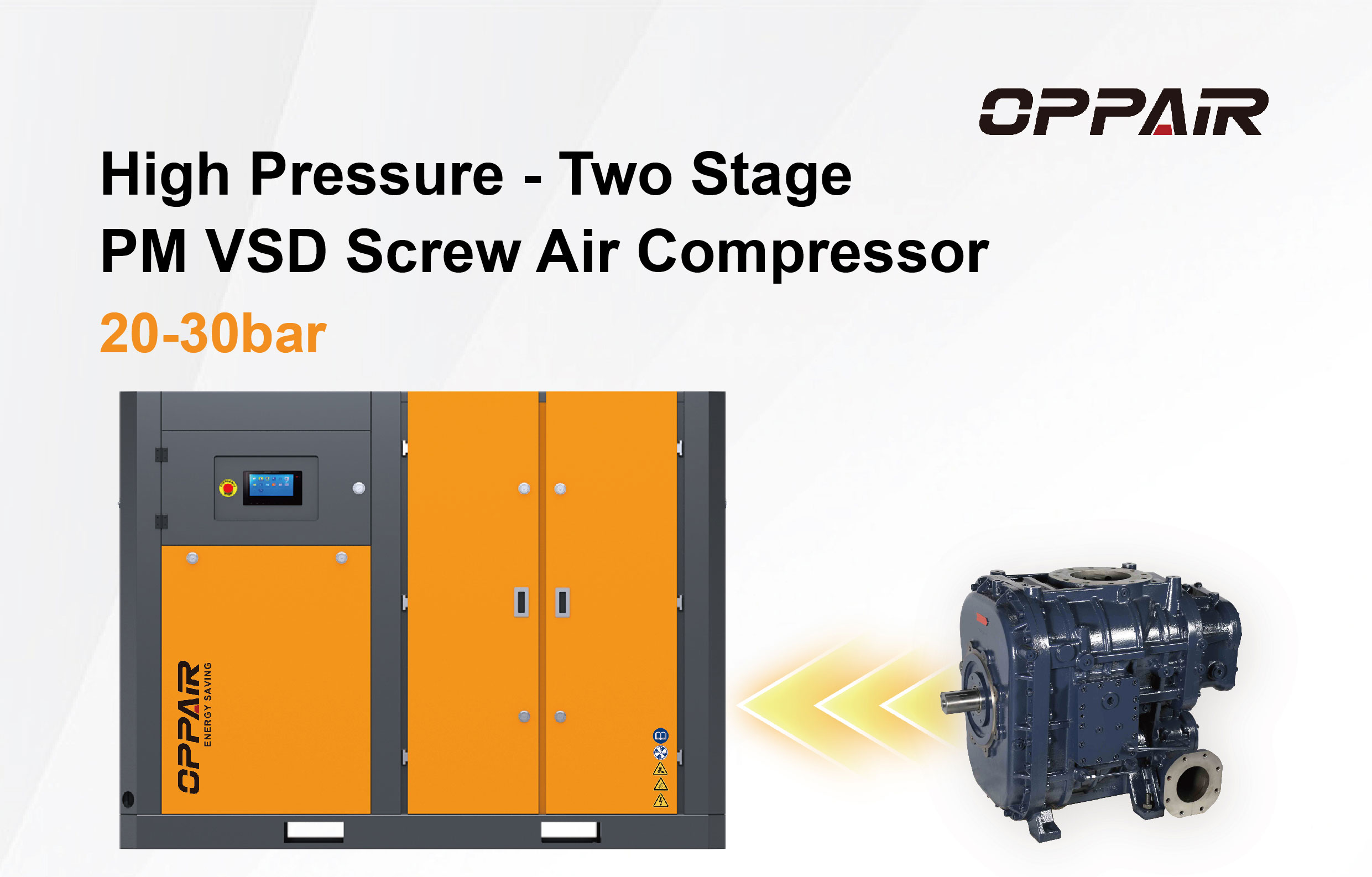

High Pressure Two-Stage PM VSD Screw Air Compressor 20-30bar

High-pressure two-stage screw air compressors are widely used in various industrial fields, especially in blow molding, petroleum chemical, electronics and other industries. Two stage 20-30bar high pressure screw air compressors are highly favored for their high efficiency, low noise and low vibration.

Model	OPT-100PV	OPT-125PV	OPT-150PV	OPT-175PV	OPT-200PV	OPT-250PV	OPT-275PV	OPT-300PV	OPT-350PV
Power(kw)	75	90	110	132	160	185	200	220	250
Horsepower(hp)	100	125	150	175	200	250	275	300	350
Air displacement/ Working pressure (m³/min. / bar)	8.41/20	9.46/20	11.56/20	14.57/20	16.33/20	21.3/20	22.66/20	23.27/20	25.66/20
	7.18/25	8.19/25	10.24/25	12.22/25	14.18/25	18.10/25	19.55/25	21.0/25	24.13/25
	/	6.95/30	8.91/30	10.89/30	12.78/30	16.34/30	17.76/30	19.18/30	21.91/30
Air outlet diameter	DN50	DN50	DN65	DN65	DN80	DN80	DN100	DN100	DN100
Noise level dB(A)	76±3	76±3	76±3	76±3	76±3	80±3	80±3	80±3	84±3
Type	PM VSD
Driven method	Direct driven
Start method	PM VSD
Length (mm)	1920	2600	2600	2600	3000	3000	3200	3600	3600
Width (mm)	1270	1600	1600	1600	1750	1750	2000	2200	2200
Height (mm)	1600	1900	1900	1900	2000	2000	2200	2500	2500
Weight (kg)	1450	1500	1600	1800	2700	3000	3800	4800	5100
