Low Pressure 2bar 3bar 4bar Oil Free Screw Air Compressor Water Injection 30kw 37kw 45kw High Quality Industrial Compressor

Short Description:

oil free water lubrication water injected water cooled screw air compressir 30kw 37kw 45kw 55kw 75kw 90kw 110kw 132kw 160kw 185kw 1.5bar 2bar 3bar 4bar low pressure no oil screw air compressor In textile glass plastics water treatment chemical cement and other industry fields save more than 30% energy oil free compressors

Send email to us

Product Detail

OPPAIR factory introduction

OPPAIR customer feedback

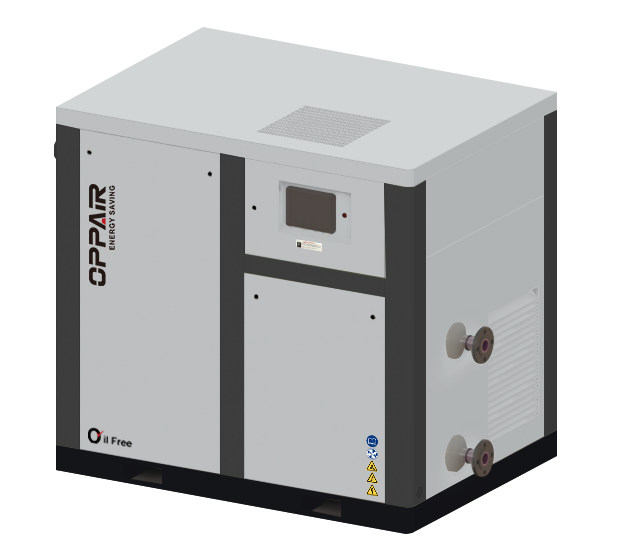

OIL-FREE WATER LUBRICATION NORMAL PRESSURE AIR COMPRESSOR

There are many low-pressure compressed air machine to be used to 1.5-4.0bar in medicine、 electronic、 chemical、microbial fermentation、blow moulding、pressure detection and other industrial production such as power plants、naval ships、military and national defense facilities. At present, piston air compressors are mostly used at home and abroad ,but its efficiency is very low. OPPAIR series compressors has compact structure、high efficiency、low noise、low vibration、 easy maintenance、 low operating cost and good air quality, and the machine was controlled by micro-computer system. The machine has multiple protective function of pressure temperature and overload energy.

In textile、glass、plastics, water treatment、chemical cement and other industry fields, 0.15-0.4Mpa compressed air is often be required, OPPAIR series compressors can save more than 30% energy than the normal compressor.

Model	Power（kw）	Horsepower （hp）	Air displacement/Working pressure（m3/min./bar)	Water outlet diamater	Air outlet diamater	Quantity oA cooling water	Lubricating water	Noise Level dB	Length（mm）	Width（mm）	Height（mm）	Weight（kg）
OFR-40PV	30	40	10.10/1.5	DN50	DN50	7	50	66	1500	1150	1550A	1100
			9.20/2
			7.80/3						1500	1150	1300W
			6.70/4
OFR-50PV	37	50	12.13/1.5	DN50	DN50	9	60	66	1500	1150	1550A	1150
			11.56/2
			10.21/3						1500	1150	1300W
			8.55/4
OFR-60PV	45	60	14.50/1.5	DN50	DN65	10	120	68	1980	1300	1760A	1390
			13.20/2
			11.20/3						1800	1300	1670W
			10.00/4
OFR-75PV	55	75	18.70/1.5	DN50	DN65	15	160	69	1980	1300	1760A	1470
			17.00/2
			16.50/3						1800	1300	1670W
			15.50/4
OFR-100PV	75	100	23.10/1.5	DN50	DN65	18	180	72	2100	1600	1900A	2250
			21.12/2
			19.55/3						2200	1500	1800W	1630
			18.50/4
OFR-125PV	90	125	27.70/1.5	DN50	DN65	20	180	73	2400	1600	2000A	2650
			25.20/2
			23.10/3						2200	1550	1800W	2350
			21.50/4
OFR-150PV	110	150	32.15/1.5	DN50	DN100	24	180	77	3000	1700	2250A	3150
			31.24/2
			30.50/3						2200	1550	1800W	2580
			27.16/4
OFR-175PV	132	175	36.50/1.5	DN50	DN100	30	180	77	3000	1700	2250A	3500
			33.20/2
			32.20/3						2200	1550	1800W	2800
			30.50/4
OFR-200PV	160	200	45.00/1.5	DN80	DN125	35	230	79	2700	1800	2050	4000
			43.15/2
			40.50/3
			36.00/4
OFR-250PV	185	250	50.60/1.5	DN80	DN125	38	230	79	2700	1800	2050	4650
			46.00/2
			42.30/3
			40.00/4
