The refrigerated dryer matched with the air compressor should not be placed in the sun, rain, wind or places with relative humidity greater than 85%.
Do not place it in an environment with a lot of dust, corrosive or flammable gases. If it is necessary to use it in an environment with corrosive gases, a refrigerated dryer with copper tubes treated with rust prevention or a refrigerated dryer with a stainless steel heat exchanger should be selected.
Do not place it in a place where there is vibration or the danger of condensed water freezing.
Do not be too close to the wall to avoid poor ventilation.
It should be used at an ambient temperature below 40℃.
Precautions for the use of air compressor and dryer pairing
The compressed air produced by the rotary screw air compressors
should not be connected incorrectly to the inlet of the refrigerated dryer.

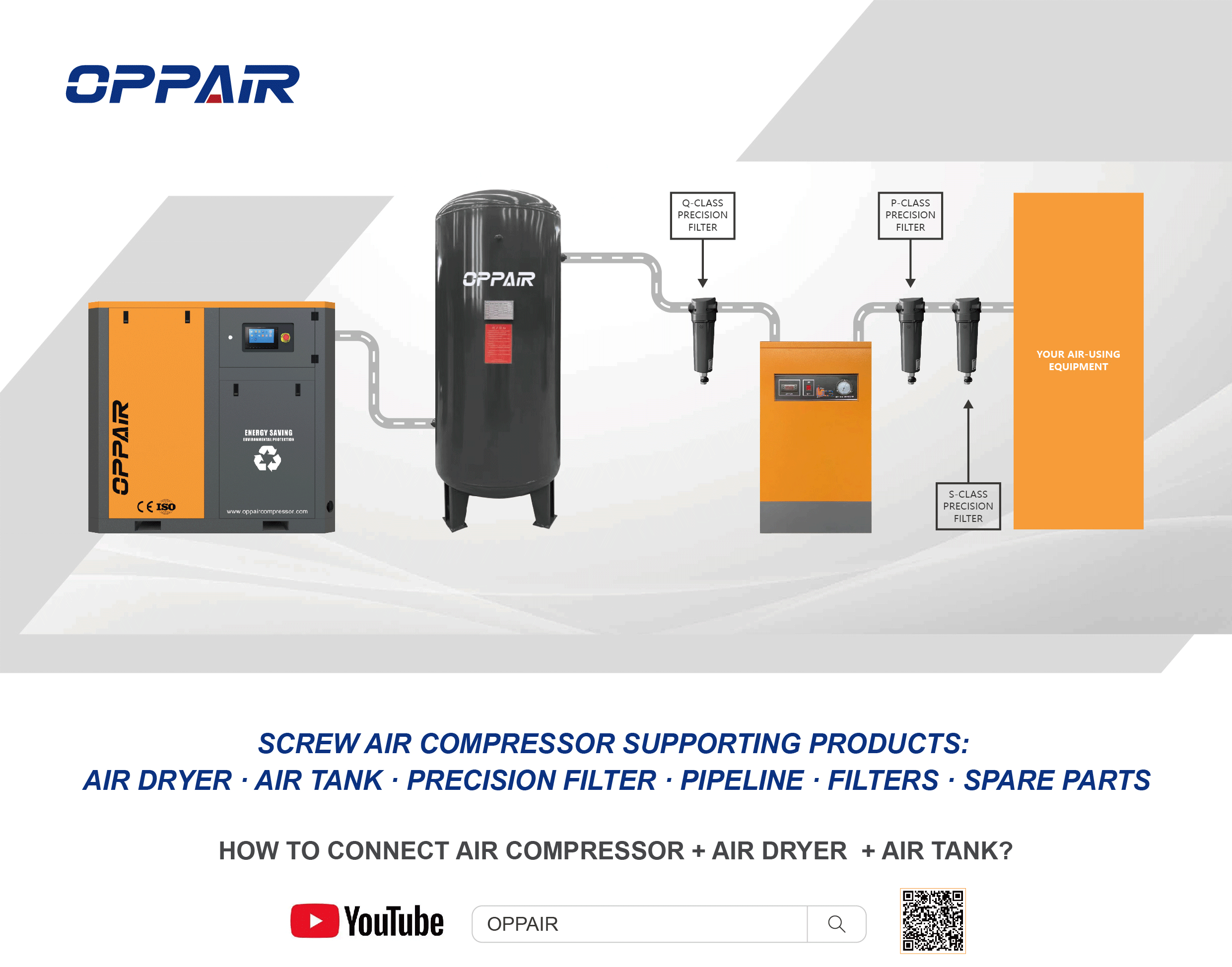

To facilitate maintenance, ensure maintenance space and set up a bypass pipeline.
Prevent the vibration of the screw air compressor from being transmitted to the refrigerated dryer.
Do not add the weight of the piping directly to the refrigerated dryer.
The drain pipe of the refrigerated dryer matched with the compresor de tornillo should not stand up, bend or flatten.
The power supply voltage of the refrigerated dryer matched with the air compress machine is allowed to fluctuate less than ±10%.
A leakage circuit breaker of appropriate capacity should be set.
It must be grounded before use.
When the compressed air inlet temperature of the refrigerated dryer matched with the screw air compressor
is too high, the ambient temperature is too high (above 40℃), the flow rate exceeds the rated air volume, the voltage fluctuation exceeds±10%, the ventilation is too poor (ventilation is also required in winter, otherwise the room temperature will also rise), etc., the protection circuit will play a role, the indicator light will go out, and the operation will stop.
When the air pressure is higher than 0.15MPa, the drain port of the normally open automatic drain can be closed.
When the drainage of the hava kompresr is too small, the drain port is in the open state and air is blown out. If the compressed air produced by the compresores de aire is of poor quality, such as mixed with dust and oil, these spoils will adhere to the heat exchanger, reducing its working efficiency, and the drainage is also prone to failure.
It is recommended to install a filter at the inlet of the refrigerated dryer and ensure that the water is drained at least once a day. The vents of the refrigerated dryer should be cleaned with a vacuum cleaner once a month.
Turn on the power, wait until the operation is stable, and then turn on the compressed air. After stopping the operation, you must wait for more than 3 minutes before restarting.
