Industrial rotary screw air compressor oil less OPPAIR

Short Description:

We know that in many industries, air purity is critical. Oil droplets can also cause product deterioration or damage to production equipment. That’s why it’s always important to consider your production process and end product when choosing an air compressor. More and more businesses are looking to oil-less air compressors as a reliable source of clean compressed air.

Oil-less compressors use various techniques to bypass oil requirements. In oil lubricated compressors, oil is used in the compression chamber to cool and seal the air.

Send email to us

Product Detail

OPPAIR factory introduction

OPPAIR customer feedback

Product Tags

Fixed Speed Screw Air Compressor

Model	OPP-10F	OPP-15F	OPP-20F	OPP-30F	OPP-40F	OPP-50F	OPP-60F	OPP-75F
Power (kw)	7.5	11	15	22	30	37	45	55
Horsepower (hp)	10	15	20	30	40	50	60	75
Air displacement/ Working pressure (M³/Min. / bar)	1.2 / 7	1.6 / 7	2.5 / 7	3.8 / 7	5.3 / 7	6.8 / 7	7.4 / 7	10.0 / 7
	1.1 / 8	1.5/8	2.3/8	3.6 / 8	5.0 / 8	6.2 / 8	7.0 / 8	9.2 / 8
	0.9 / 10	1.3 / 10	2.1 / 10	3.2 / 10	4.5 / 10	5.6 / 10	6.2 / 10	8.5 / 10
	0.8 / 12	1.1 / 12	1.9 / 12	2.7 / 12	4.0 / 12	5.0 / 12	5.6 / 12	7.6 / 12
Air out let diameter	DN20	DN25	DN25	DN25	DN40	DN40	DN40	DN50
Lubricating oil volume (L)	10	16	16	18	30	30	30	65
Noise level dB(A)	60±2	62±2	62±2	64±2	66±2	66±2	66±2	68±2
Driven method	Direct driven
Type	Fixed Speed
Start method	Υ-Δ
Length (mm)	950	1150	1150	1350	1500	1500	1500	1900
Width (mm)	670	820	820	920	1020	1020	1020	1260
Height (mm)	1030	1130	1130	1230	1310	1310	1310	1600
Weight (kg)	250	400	400	550	700	750	800	1750

Model	OPP-100F	OPP-125F	OPP-150F	OPP-175F	OPP-200F	OPP-275F	OPP-350F
Power (kw)	75.0	90	110	132	160	200	250
Horsepower (hp)	100	125	150	175	200	275	350
Air displacement/ Working pressure (M³/Min. / bar)	13.4 / 7	16.2 / 7	21.0 / 7	24.5 / 7	32.4 / 7	38.2 / 7	45.5 / 7
	12.6 / 8	15.0 / 8	19.8 / 8	23.2 / 8	30.2 / 8	36.9 / 8	43 / 8
	11.2 / 10	13.8 / 10	17.4 / 10	20.5 / 10	26.9 / 10	33/ / 10	38.9 / 10
	10.0 / 12	12.3 / 12	14.8 / 12	17.4 / 12	23 / 12	28.5 / 12	36 / 12
Air out let diameter	DN50	DN50	DN65	DN65	DN75	DN90	DN90
Lubricating oil volume (L)	65	72	90	90	110	130	150
Noise level dB(A)	68±2	70±2	70±2	70±2	75±2	85±2	85±2
Driven method	Direct driven
Type	Fixed Speed
Start method	Υ-Δ
Length (mm)	1900	2450	2450	2450	2760	2760	2760
Width (mm)	1260	1660	1660	1660	1800	1800	1800
Height (mm)	1600	1700	1700	1700	2100	2100	2100
Weight (kg)	1850	1950	2200	2500	2800	3100	3500

Permanent Magnet Frequency Conversion Series

Model	OPP-10PV	OPP-15PV	OPP-20PV	OPP-30PV	OPP-40PV	OPP-50PV	OPP-60PV	OPP-75PV
Power (kw)	7.5	11	15	22	30	37	45	55
Horsepower (hp)	10	15	20	30	40	50	60	75
Air displacement/ Working pressure (M³/Min. / bar)	1.2 / 7	1.6 / 7	2.5 / 7	3.8 / 7	5.3 / 7	6.8 / 7	7.4 / 7	10.0 / 7
	1.1 / 8	1.5/8	2.3/8	3.6 / 8	5.0 / 8	6.2 / 8	7.0 / 8	9.2 / 8
	0.9 / 10	1.3 / 10	2.1 / 10	3.2 / 10	4.5 / 10	5.6 / 10	6.2 / 10	8.5 / 10
	0.8 / 12	1.1 / 12	1.9 / 12	2.7 / 12	4.0 / 12	5.0 / 12	5.6 / 12	7.6 / 12
Air out let diameter	DN20	DN25	DN25	DN25	DN40	DN40	DN40	DN50
Lubricating oil volume (L)	10	16	16	18	30	30	30	65
Noise level dB(A)	60±2	62±2	62±2	64±2	66±2	66±2	66±2	68±2
Driven method	Direct driven
Type	PM VSD
Start method	Variable frequency start
Length (mm)	950	1150	1150	1350	1500	1500	1500	1900
Width (mm)	670	820	820	920	1020	1020	1020	1260
Height (mm)	1030	1130	1130	1230	1310	1310	1310	1600
Weight (kg)	250	400	400	550	700	750	800	1750

Model	OPP-100PV	OPP-125F	OPP-150PV	OPP-175PV	OPP-200PV	OPP-275PV	OPP-350PV
Power (kw)	75.0	90	110	132	160	200	250
Horsepower (hp)	100	125	150	175	200	275	350
Air displacement/ Working pressure (M³/Min. / bar)	13.4 / 7	16.2 / 7	21.0 / 7	24.5 / 7	32.4 / 7	38.2 / 7	45.5 / 7
	12.6 / 8	15.0 / 8	19.8 / 8	23.2 / 8	30.2 / 8	36.9 / 8	43 / 8
	11.2 / 10	13.8 / 10	17.4 / 10	20.5 / 10	26.9 / 10	33/ / 10	38.9 / 10
	10.0 / 12	12.3 / 12	14.8 / 12	17.4 / 12	23 / 12	28.5 / 12	36 / 12
Air out let diameter	DN50	DN50	DN65	DN65	DN75	DN90	DN90
Lubricating oil volume (L)	65	72	90	90	110	130	150
Noise level dB(A)	68±2	70±2	70±2	70±2	75±2	85±2	85±2
Driven method	Direct driven
Type	PM VSD
Start method	Variable frequency start
Length (mm)	1900	2450	2450	2450	2760	2760	2760
Width (mm)	1260	1660	1660	1660	1800	1800	1800
Height (mm)	1600	1700	1700	1700	2100	2100	2100
Weight (kg)	1850	1950	2200	2500	2800	3100	3500

Product description

SMART CONTROLLER

1. Adopts PLC multilanguage control system, beautiful and intuitive interface, easy to operate function, operators can quickly and easily adjust the compressor.
2. 14 protection functions such as overload protection, short circuit protection, reverse protection, low temperature protection, high voltage protection, etc. to fully protect the unit.
3. The advanced microcomputer control drive system realizes itelligent control, air volume variable speed control, automatic adjustment of load start and soft start. Inelligent dynamic control, dynamic display of the working status of each component of the compressor, visual pressure, temperature, current working curve, etc.
4. Large memory and equipped with printer interface; It can use computer remote monitoring or multiple linkage control between air compressors.

HEAT EXHANGER

1. The heat exchanger uses high-quality raw materials and a unique intemal channel design, which increases the heat exchange area and can effectively dissipate heat for the air compressor.
2. The inner wall of the heat exchanger is treated with corrosion protection to increase the service life of the heat exchanger and increase the heat transfer effect.
3. The radiator has passed the strict factory test, and the quality is reliable, which efetively prevents the high temperature of the air compressor and increases the service life of the machine.

INTAKE VALVE

1. Intake valve is the core component to control the air intake of the air compressor.
2. Adopting the world famous brand air intake valve, it can automatically adjust theair volume by 0-100% according to the requirement of the system air quantity. It promises small pressure loss, stable action and long life consequently reduced operating costs.

Product Appearance

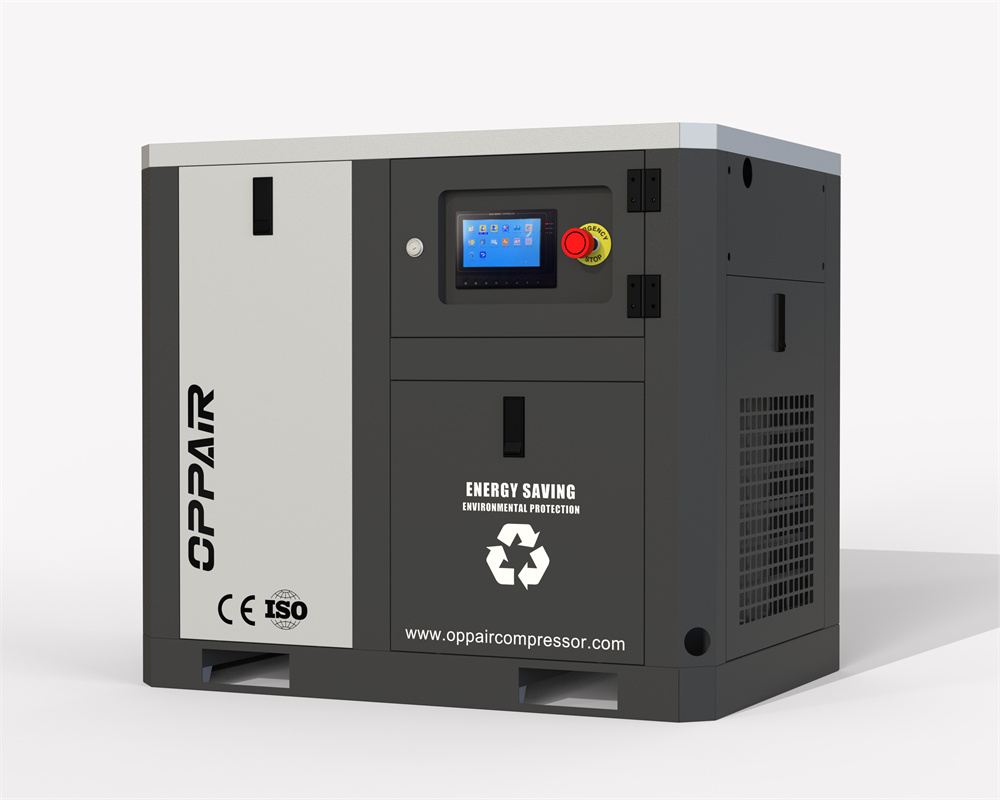

Oil less Screw Air Compressor Machine For Sale (3)

Oil less Screw Air Compressor Machine For Sale (2)

Oil less Screw Air Compressor Machine For Sale (1)
