40hp Frequency conversion screw air compressor

Short Description:

Medium Pressures Double Screw Air Compressor is a kind of oil-injected double screw air compressor with screw air end of high quality medium pressure single-stage or two-stage type. Reliable perfomance, excellent quality, enviromental protection and energy-saving. Widely applied to the industries of mine projects, medical, food, electronics, chemical plant, mechanical and so on.

Perfect screw air end desigh parameter, accurate calculation of heat balance and linear expansion coefficient, high volume efficiency and advanced process flow. Superior product, sophisticated processing and manufacturing, and precision coordination, that can reach high efficiency and best compression ratio. The thrust bearing and radial bearing with better anti-abrasion function have more strong axial carrying capacity and stable running performance. The new inter-stage, cooling system make the compression ratio between two-stage compression higher, improve compressor efficiency, lower power consumption, save energy and protect enviroment, The wide application of unique sealing technology in the screw air end make reliability more higher and maintenance more convenient

Send email to us

Product Detail

OPPAIR factory introduction

OPPAIR customer feedback

Product Tags

Fixed Speed Screw Air Compressor

Model	OPP-10F	OPP-15F	OPP-20F	OPP-30F	OPP-40F	OPP-50F	OPP-60F	OPP-75F
Power (kw)	7.5	11	15	22	30	37	45	55
Horsepower (hp)	10	15	20	30	40	50	60	75
Air displacement/ Working pressure (M³/Min. / bar)	1.2 / 7	1.6 / 7	2.5 / 7	3.8 / 7	5.3 / 7	6.8 / 7	7.4 / 7	10.0 / 7
	1.1 / 8	1.5/8	2.3/8	3.6 / 8	5.0 / 8	6.2 / 8	7.0 / 8	9.2 / 8
	0.9 / 10	1.3 / 10	2.1 / 10	3.2 / 10	4.5 / 10	5.6 / 10	6.2 / 10	8.5 / 10
	0.8 / 12	1.1 / 12	1.9 / 12	2.7 / 12	4.0 / 12	5.0 / 12	5.6 / 12	7.6 / 12
Air out let diameter	DN20	DN25	DN25	DN25	DN40	DN40	DN40	DN50
Lubricating oil volume (L)	10	16	16	18	30	30	30	65
Noise level dB(A)	60±2	62±2	62±2	64±2	66±2	66±2	66±2	68±2
Driven method	Direct driven
Type	Fixed Speed
Start method	Υ-Δ
Length (mm)	950	1150	1150	1350	1500	1500	1500	1900
Width (mm)	670	820	820	920	1020	1020	1020	1260
Height (mm)	1030	1130	1130	1230	1310	1310	1310	1600
Weight (kg)	250	400	400	550	700	750	800	1750

Model	OPP-100F	OPP-125F	OPP-150F	OPP-175F	OPP-200F	OPP-275F	OPP-350F
Power (kw)	75.0	90	110	132	160	200	250
Horsepower (hp)	100	125	150	175	200	275	350
Air displacement/ Working pressure (M³/Min. / bar)	13.4 / 7	16.2 / 7	21.0 / 7	24.5 / 7	32.4 / 7	38.2 / 7	45.5 / 7
	12.6 / 8	15.0 / 8	19.8 / 8	23.2 / 8	30.2 / 8	36.9 / 8	43 / 8
	11.2 / 10	13.8 / 10	17.4 / 10	20.5 / 10	26.9 / 10	33/ / 10	38.9 / 10
	10.0 / 12	12.3 / 12	14.8 / 12	17.4 / 12	23 / 12	28.5 / 12	36 / 12
Air out let diameter	DN50	DN50	DN65	DN65	DN75	DN90	DN90
Lubricating oil volume (L)	65	72	90	90	110	130	150
Noise level dB(A)	68±2	70±2	70±2	70±2	75±2	85±2	85±2
Driven method	Direct driven
Type	Fixed Speed
Start method	Υ-Δ
Length (mm)	1900	2450	2450	2450	2760	2760	2760
Width (mm)	1260	1660	1660	1660	1800	1800	1800
Height (mm)	1600	1700	1700	1700	2100	2100	2100
Weight (kg)	1850	1950	2200	2500	2800	3100	3500

Permanent Magnet Frequency Conversion Series

Model	OPP-10PV	OPP-15PV	OPP-20PV	OPP-30PV	OPP-40PV	OPP-50PV	OPP-60PV	OPP-75PV
Power (kw)	7.5	11	15	22	30	37	45	55
Horsepower (hp)	10	15	20	30	40	50	60	75
Air displacement/ Working pressure (M³/Min. / bar)	1.2 / 7	1.6 / 7	2.5 / 7	3.8 / 7	5.3 / 7	6.8 / 7	7.4 / 7	10.0 / 7
	1.1 / 8	1.5/8	2.3/8	3.6 / 8	5.0 / 8	6.2 / 8	7.0 / 8	9.2 / 8
	0.9 / 10	1.3 / 10	2.1 / 10	3.2 / 10	4.5 / 10	5.6 / 10	6.2 / 10	8.5 / 10
	0.8 / 12	1.1 / 12	1.9 / 12	2.7 / 12	4.0 / 12	5.0 / 12	5.6 / 12	7.6 / 12
Air out let diameter	DN20	DN25	DN25	DN25	DN40	DN40	DN40	DN50
Lubricating oil volume (L)	10	16	16	18	30	30	30	65
Noise level dB(A)	60±2	62±2	62±2	64±2	66±2	66±2	66±2	68±2
Driven method	Direct driven
Type	PM VSD
Start method	Variable frequency start
Length (mm)	950	1150	1150	1350	1500	1500	1500	1900
Width (mm)	670	820	820	920	1020	1020	1020	1260
Height (mm)	1030	1130	1130	1230	1310	1310	1310	1600
Weight (kg)	250	400	400	550	700	750	800	1750

Model	OPP-100PV	OPP-125F	OPP-150PV	OPP-175PV	OPP-200PV	OPP-275PV	OPP-350PV
Power (kw)	75.0	90	110	132	160	200	250
Horsepower (hp)	100	125	150	175	200	275	350
Air displacement/ Working pressure (M³/Min. / bar)	13.4 / 7	16.2 / 7	21.0 / 7	24.5 / 7	32.4 / 7	38.2 / 7	45.5 / 7
	12.6 / 8	15.0 / 8	19.8 / 8	23.2 / 8	30.2 / 8	36.9 / 8	43 / 8
	11.2 / 10	13.8 / 10	17.4 / 10	20.5 / 10	26.9 / 10	33/ / 10	38.9 / 10
	10.0 / 12	12.3 / 12	14.8 / 12	17.4 / 12	23 / 12	28.5 / 12	36 / 12
Air out let diameter	DN50	DN50	DN65	DN65	DN75	DN90	DN90
Lubricating oil volume (L)	65	72	90	90	110	130	150
Noise level dB(A)	68±2	70±2	70±2	70±2	75±2	85±2	85±2
Driven method	Direct driven
Type	PM VSD
Start method	Variable frequency start
Length (mm)	1900	2450	2450	2450	2760	2760	2760
Width (mm)	1260	1660	1660	1660	1800	1800	1800
Height (mm)	1600	1700	1700	1700	2100	2100	2100
Weight (kg)	1850	1950	2200	2500	2800	3100	3500

Product description

FAN

1. The fan uses a large fan design to effectively enhance the fan's heat dissipation effect.The motor adopts a special intermnal design to adapt to harsh working conditions.
2. The fan motor adopts specal winding and high protection grade design to adapt to harsh working conditions.
3. The fan is controlld by the controller to realie the automatic start and stop function, which efctively maintains the normal working temperature of the air compressor lubricant.

INTAKE VALVE

1. Intake valve is the core component to control the air intake of the air compressor.
2. Adopting the world famous brand air intake valve, it can automatically adjust theair volume by 0-100% according to the requirement of the system air quantity. It promises small pressure loss, stable action and long life consequently reduced operating costs.

HEAT EXHANGER

1. The heat exchanger uses high-quality raw materials and a unique intemal channel design, which increases the heat exchange area and can effectively dissipate heat for the air compressor.
2. The inner wall of the heat exchanger is treated with corrosion protection to increase the service life of the heat exchanger and increase the heat transfer effect.
3. The radiator has passed the strict factory test, and the quality is reliable, which efetively prevents the high temperature of the air compressor and increases the service life of the machine.

Product features

1. The screw air compressor has the advantages of high stability, high efficiency, low vibration and low noise.

2. The yin and yang rotors and the coordination between the rotor and the casing are set, so that the backflow leakage of the gas is less, and there is no residual clearance volume, so the efficiency is high.

3. The injected lubricating oil has the functions of sealing, cooling, noise reduction and lubrication

4. Compared with piston machine, it has less wearing parts and lower failure rate.

5. The screw compression working curve is smooth, with less vibration and low noise compared with the piston machine.

6. The cooling method is generally divided into: water cooling and air cooling.

7. Heat dissipation system: plate-fin structure and high-quality materials are used to ensure that the cooler can withstand pressure, have high heat dissipation efficiency and good corrosion resistance.

8. Air filter: heavy-duty, multi-stage air inlet filter, dust removal accuracy 1um (98% is filtered out), large working surface, relatively long service life.

9. Oil/gas separator: The new generation of separator adopts a new filter material, with higher efficiency, and the air oil content is less than 2ppm.

10. Intelligent controller: All operations and related data of the air compressor are displayed on the control panel, which can be controlled between your fingers, easy, convenient and accurate.

Air Compressor Equipment - Screw air compressors drive the compression components at the optimum speed for the application through an efficient drive system. Completely maintenance-free during normal operation.

Product Details

40hp Frequency conversion screw air compressor (1)

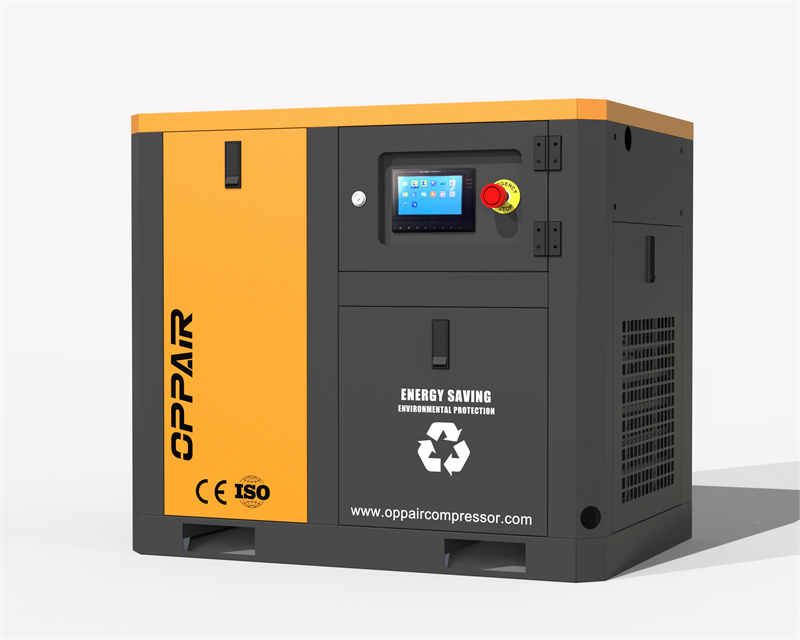

40hp Frequency conversion screw air compressor (3)

40hp Frequency conversion screw air compressor (2)
