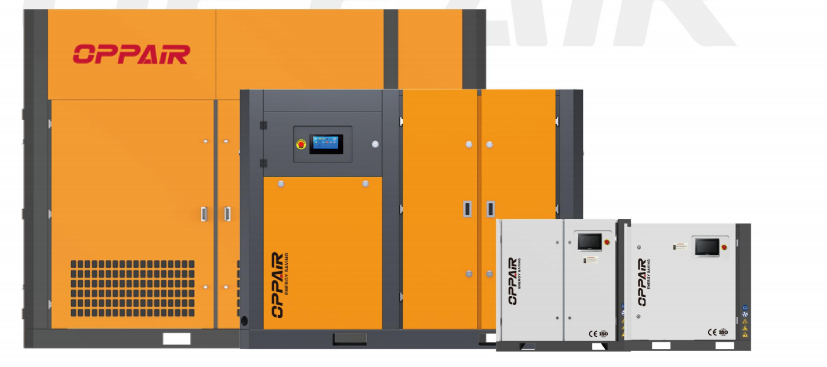

OPP-50PV 37kw 50hp 5.0-6.8m3/min 7/8/10/12bar PM VSD Screw Air Compressor Stable and Durable Machine

Short Description:

Power (kw)：37
Horsepower (hp)：50
Air displacement/Working pressure ：6.8m3/min/7bar，6.2m3/min/8bar，5.6m3/min/10bar，5.0m3/min/12bar
Air outlet diameter：DN40
Lubricating oil volume (L)：30
Noise level dB(A)：66±2
Driven method：Direct driven
Type：PM VSD
Start method：Variable frequency start

Send email to us

Product Detail

OPPAIR factory introduction

OPPAIR customer feedback

Permanent Magnet Frequency Conversion Series

Model	OPP-10PV	OPP-15PV	OPP-20PV	OPP-30PV	OPP-40PV	OPP-50PV	OPP-60PV	OPP-75PV
Power (kw)	7.5	11	15	22	30	37	45	55
Horsepower (hp)	10	15	20	30	40	50	60	75
Air displacement/ Working pressure (m³/min. / bar)	1.2 / 7	1.6 / 7	2.5 / 7	3.8 / 7	5.3 / 7	6.8 / 7	7.4 / 7	10.0 / 7
	1.1 / 8	1.5 / 8	2.3 / 8	3.6 / 8	5.0 / 8	6.2 / 8	7.0 / 8	9.2 / 8
	0.9 / 10	1.3 / 10	2.1 / 10	3.2 / 10	4.5 / 10	5.6 / 10	6.2 / 10	8.5 / 10
	0.8 / 12	1.1 / 12	1.9 / 12	2.7 / 12	4.0 / 12	5.0 / 12	5.6 / 12	7.6 / 12
Air out let diameter	DN15	DN20	DN20	DN25	DN40	DN40	DN40	DN50
Lubricating oil volume (L)	10	16	16	18	30	30	30	65
Noise level dB(A)	60±2	62±2	62±2	64±2	66±2	66±2	66±2	68±2
Driven method	Direct driven
Type	PM VSD
Start method	Variable frequency start
Length (mm)	930	1080	1080	1300	1390	1390	1500	1600
Width (mm)	620	700	700	850	9500	9500	950	1170
Height (mm)	820	1060	1060	1160	1250	1250	1250	1520
Weight (kg)	185	245	245	425	460	460	550	1005

Model	OPP-100PV	OPP-125F	OPP-150PV	OPP-175PV	OPP-200PV	OPP-275PV	OPP-350PV
Power (kw)	75	90	110	132	160	200	250
Horsepower (hp)	100	125	150	175	200	275	350
Air displacement/ Working pressure (m³/min. / bar)	13.4 / 7	16.2 / 7	21.0 / 7	24.5 / 7	32.4 / 7	38.2 / 7	45.5 / 7
	12.6 / 8	15.0 / 8	19.8 / 8	23.2 / 8	30.2 / 8	36.9 / 8	43 / 8
	11.2 / 10	13.8 / 10	17.4 / 10	20.5 / 10	26.9 / 10	33 / 10	38.9 / 10
	10.0 / 12	12.3 / 12	14.8 / 12	17.4 / 12	23 / 12	28.5 / 12	36 / 12
Air out let diameter	DN50	DN50	DN65	DN65	DN75	DN90	DN90
Lubricating oil volume (L)	65	72	90	90	110	130	150
Noise level dB(A)	68±2	70±2	70±2	70±2	75±2	85±2	85±2
Driven method	Direct driven
Type	PM VSD
Start method	Variable frequency start
Length (mm)	1720	2450	2450	2450	2760	2760	2760
Width (mm)	1220	1660	1660	1660	1800	1800	1800
Height (mm)	1600	1700	1700	1700	2100	2100	2100
Weight (kg)	1195	1950	2200	2500	2800	3100	3500

As the main model of OPPAiR, the Permanent Magnet Variable Freguency Air Compressol(PM VSD/VFD Tvpe) has outstandincadvantages:

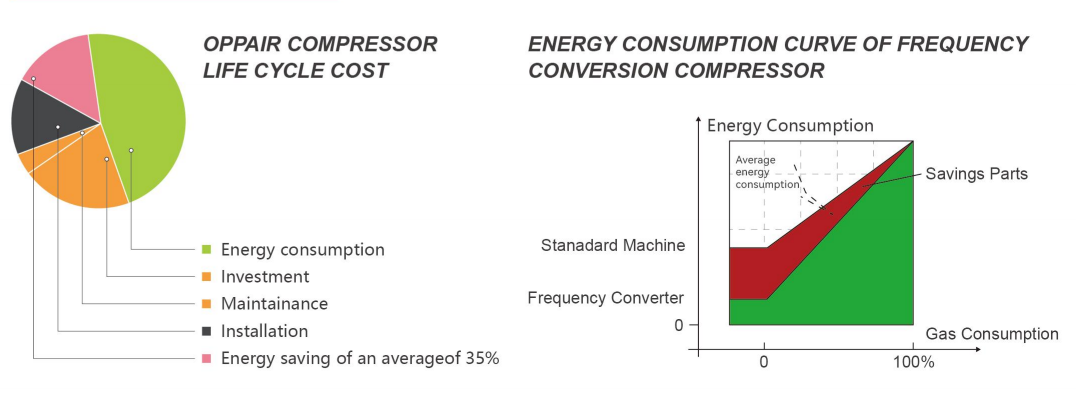

1.Deep energy saving can reach 30%

2.Intelligent control system

3.The latest generation of high-efficiency permanent magnet motors

4.The latest generation of ultra-stable inverter

5.Soft start,small start impact

6.Low noise
